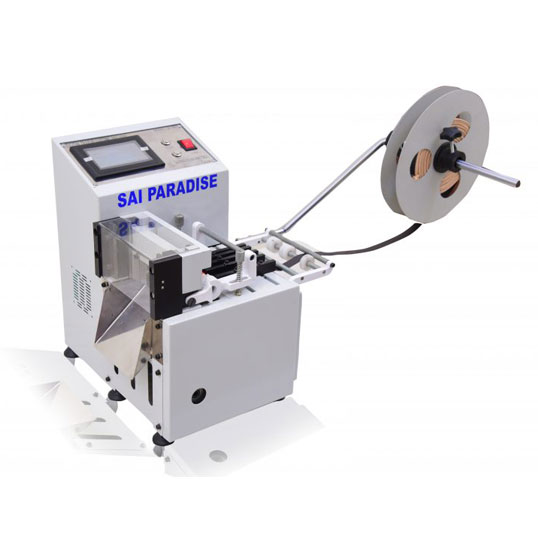

Sleeve Cutting Machine (SL-100Plus Servo)

Description

The set up and operation of SL-100 plus Servo is managed through the use of electronic counters, the PLC based controls and touch screen (HMI) with servo motors. Material guides are easily adjusted for different applications requirements.

Multi materials guides are also available to feed more than one material source for more productivity. Additional design features includes a durable roller feed system and strong cutting mechanism designed for long life and continuous operations.

Features
  • Durable and robust design for longer life
  • Multiple material guides for more productivity
  • Easy programme settings and operations
  • Fast and hassle-free transport system
  • All electric operations
  • Low power consumption
  • Less wastage
  • High accuracy
  • Inch mode option to set the corrections
Applications

SL-100 plus Servo is an automatic measuring and cutting machine. It will process flat and round materials including of wires, cables, tubes, sleeves, tapes, labels and screens and so on in PVC, heat – shrink, rubber, Teflon , fiber glass, flat ribbon cables, nylon materials to name a few.

Technical Details
Operating interphase HMI (Touch Screen)
Maximum material width 100.0 mm
Maximum Tube Outer Dia 40.0 mm
Maximum Tube Thickness 2.0mm
Maximum Feed Rate 2.0 meter per second
Pulling force 100N
Maximum length 1mm to 9999 mm
Length Increment 0.1 mm
Length Accuracy ±0.5MM ( L x 0.02%) Depends on the materials
Program memory capacity Upto 100 no’s with all processing parameters
Noise Level < 70 db
Power 500 watts
Power Supply 230 to 240V (50/60 Hz) (optional 110V)
Dimensions (L x W x H) 300 x 300 x 450 mm
Net Weight 26 kgs
Output Range (approx) 10000 nos per hour at 100 mm length and single line feed (depending on materials)
