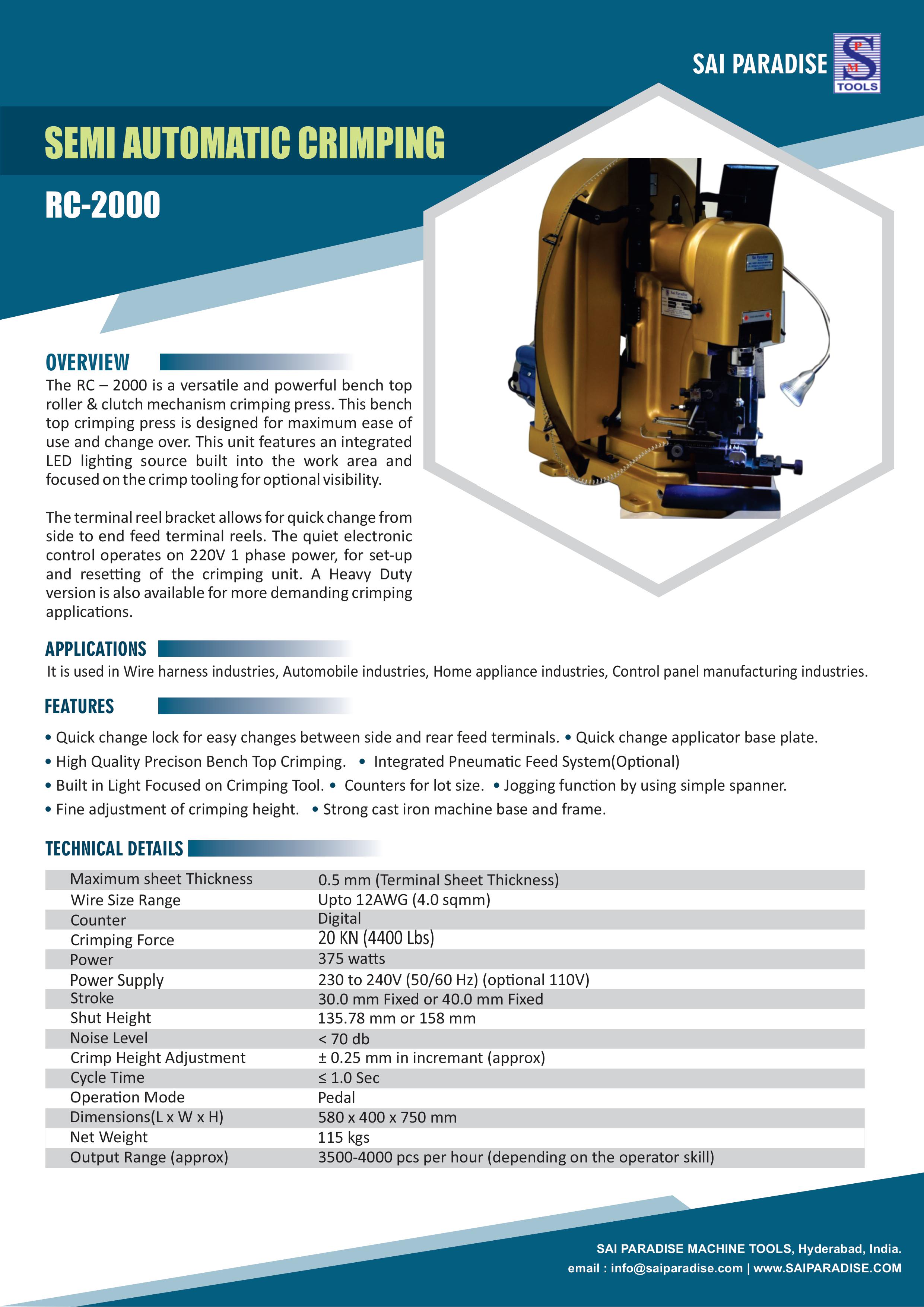

Semi Automatic Crimping (RC-2000)

Description

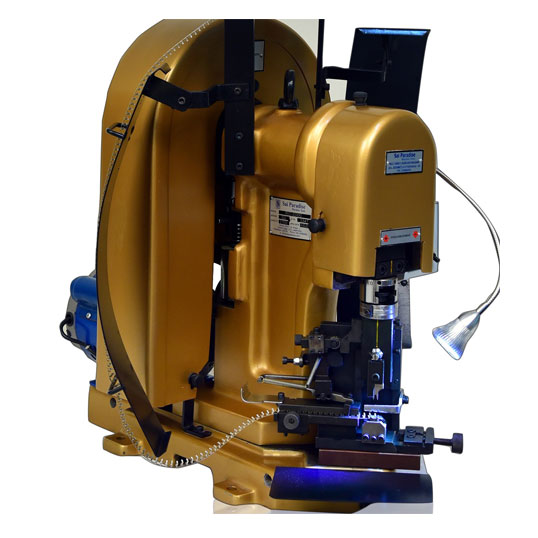

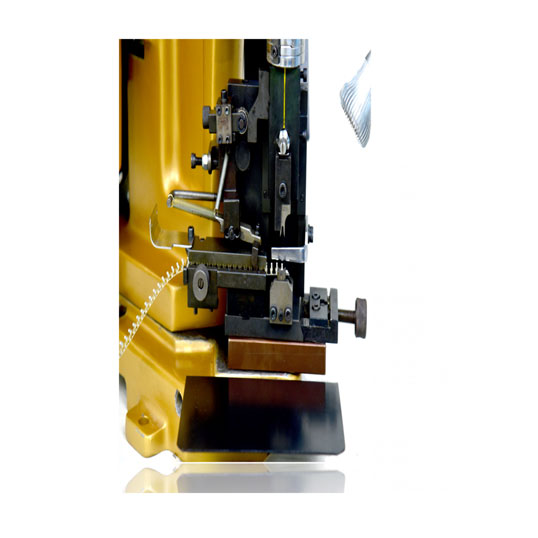

The RC – 2000 is a versatile and powerful bench top roller & clutch mechanism crimping press. This bench top crimping press is designed for maximum ease of use and change over. This unit features an integrated LED lighting source built into the work area and focused on the crimp tooling for optional visibility.

The terminal reel bracket allows for quick change from side to end feed terminal reels. The quiet electronic control operates on 220V 1 phase power, for set-up and resetting of the crimping unit. A Heavy Duty version is also available for more demanding crimping applications.

Features
  • Quick change lock for easy changes between side and rear feed terminals.
  • High Quality Precison Bench Top Crimping.
  • Built in Light Focused on Crimping Tool.
  • Intergrated Pneumatic Feed System(Optional)
  • Quick change applicator base plate.
  • Counters for lot size.
  • Jogging function by using simple spanner.
  • Fine adjustment of crimping height.
  • Strong cast iron machine base and frame.
Applications

It is used in Wire harness industries, Automobile industries, Home appliance industries, Control panel manufacturing industries.

Technical Details
Maximum sheet Thickness 0.5 mm (Terminal Sheet Thickness)
Wire Size Range Upto 12AWG (4.0 sqmm)
Counter Digital
Crimping Force 20 KN (4400 Lbs)
Power 375 watts
Power Supply 230 to 240V (50/60 Hz) (optional 110V)
Stroke 30.0 mm Fixed or 40.0 mm Fixed
Shut Height 135.78mm or 158mm
Noise Level < 70 db
Crimp Height Adjustment ± 0.25mm in incremant (approx)
Cycle Time ≤ 1.0 Sec
Operation Mode Pedal
Dimensions(L x W x H) 580 x 400 x 750 mm
Net Weight 115 kgs
Output Range (approx) 3500-4000 pcs per hour (depending on the operator skill)
