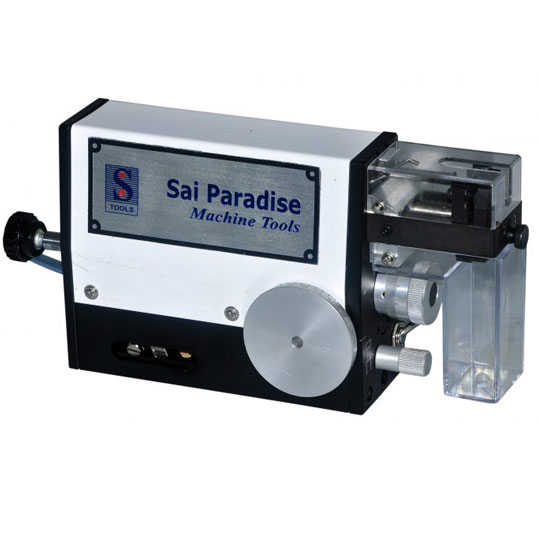

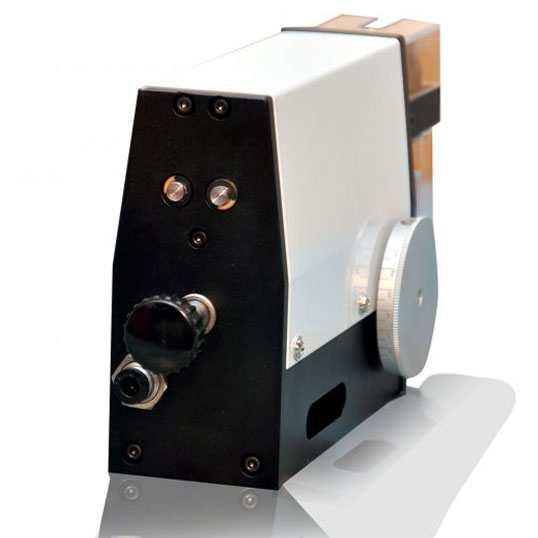

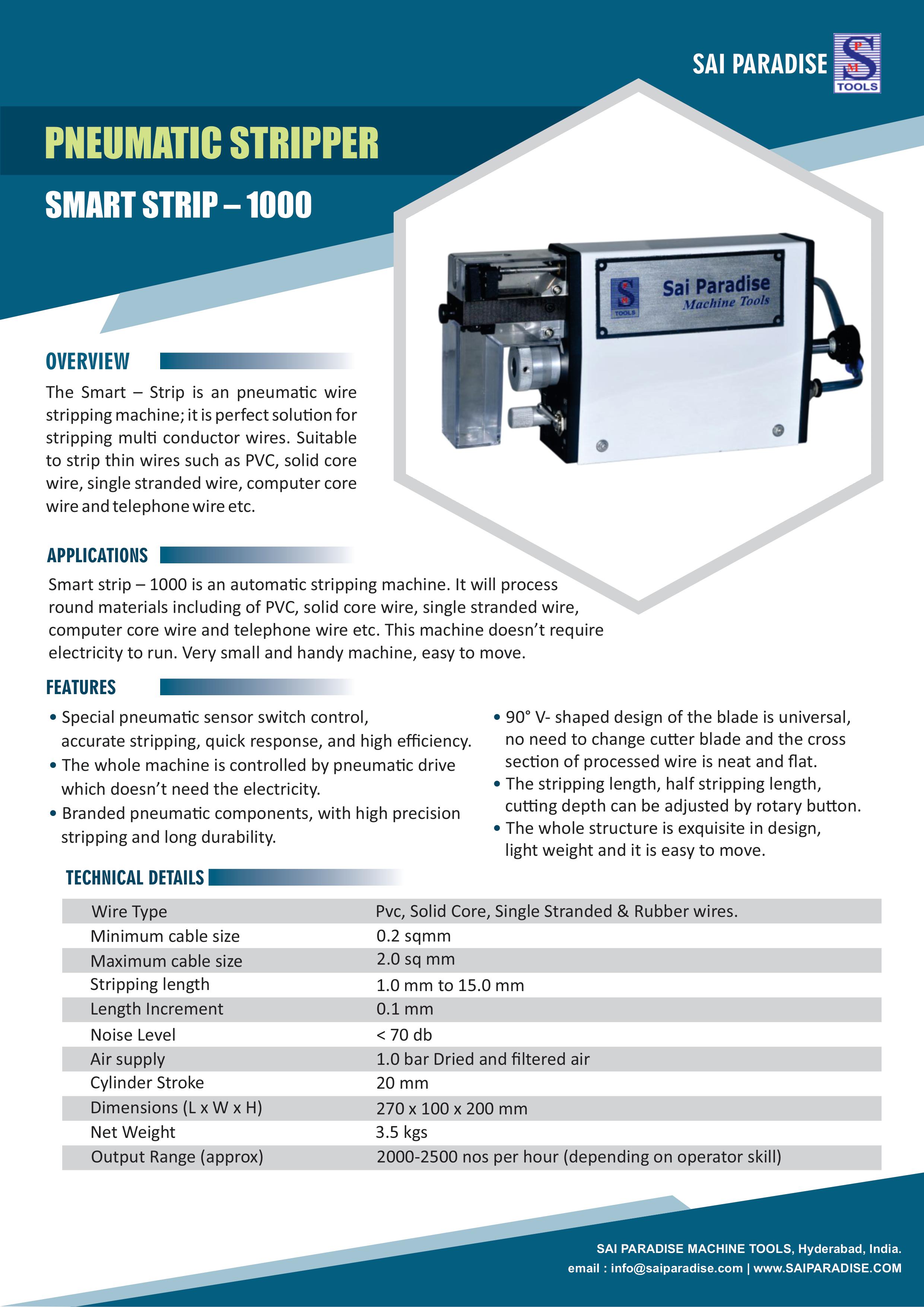

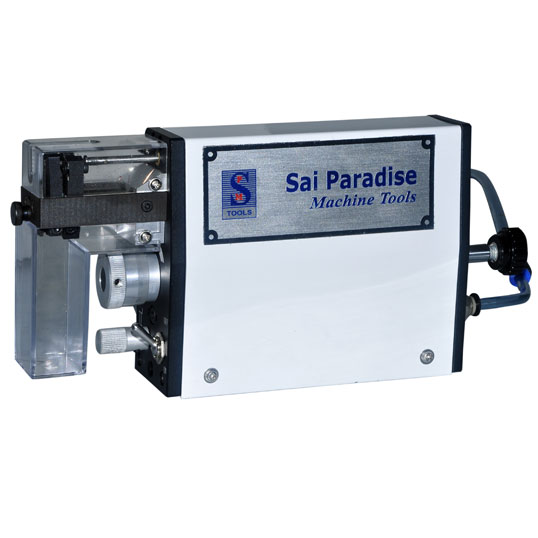

Pneumatic Stripper (Smart Strip – 1000)

Description

The Smart – Strip is an pneumatic wire stripping machine; it is perfect solution for stripping multi conductor wires. Suitable to strip thin wires such as PVC, solid core wire, single stranded wire, computer core wire and telephone wire etc.

Features

Special pneumatic sensor switch control, accurate stripping, quick response, and high efficiency
The whole machine is controlled by pneumatic drive which doesn’t need the electricity
Branded pneumatic components, with high precision stripping and long durability
90° V- shaped design of the blade is universal, no need to change cutter blade and the cross section of processed wire is neat and flat
The stripping length, half stripping length, cutting depth can be adjusted by rotary button
The whole structure is exquisite in design, light weight and it is easy to move

Applications

Smart strip – 1000 is an automatic stripping machine. It will process round materials including of PVC, solid core wire, single stranded wire, computer core wire and telephone wire etc. This machine doesn’t require electricity to run. Very small and handy machine, easy to move.

Technical Details

Wire Type	Pvc, Solid Core, Single Stranded & Rubber wires
Minimum cable size	0.2 sqmm
Maximum cable size	2.0 sqmm
Stripping length	1.0 mm to 15.0 mm
Length Increment	0.1 mm
Noise Level	< 70 db
Air supply	1.0 bar Dried and filtered air
Cylinder Stroke	20 mm
Dimensions (L x W x H)	270 x 100 x 200 mm
Net Weight	3.5 kgs
Output Range (approx)	2000-2500 nos per hour (depending on operator skill)
