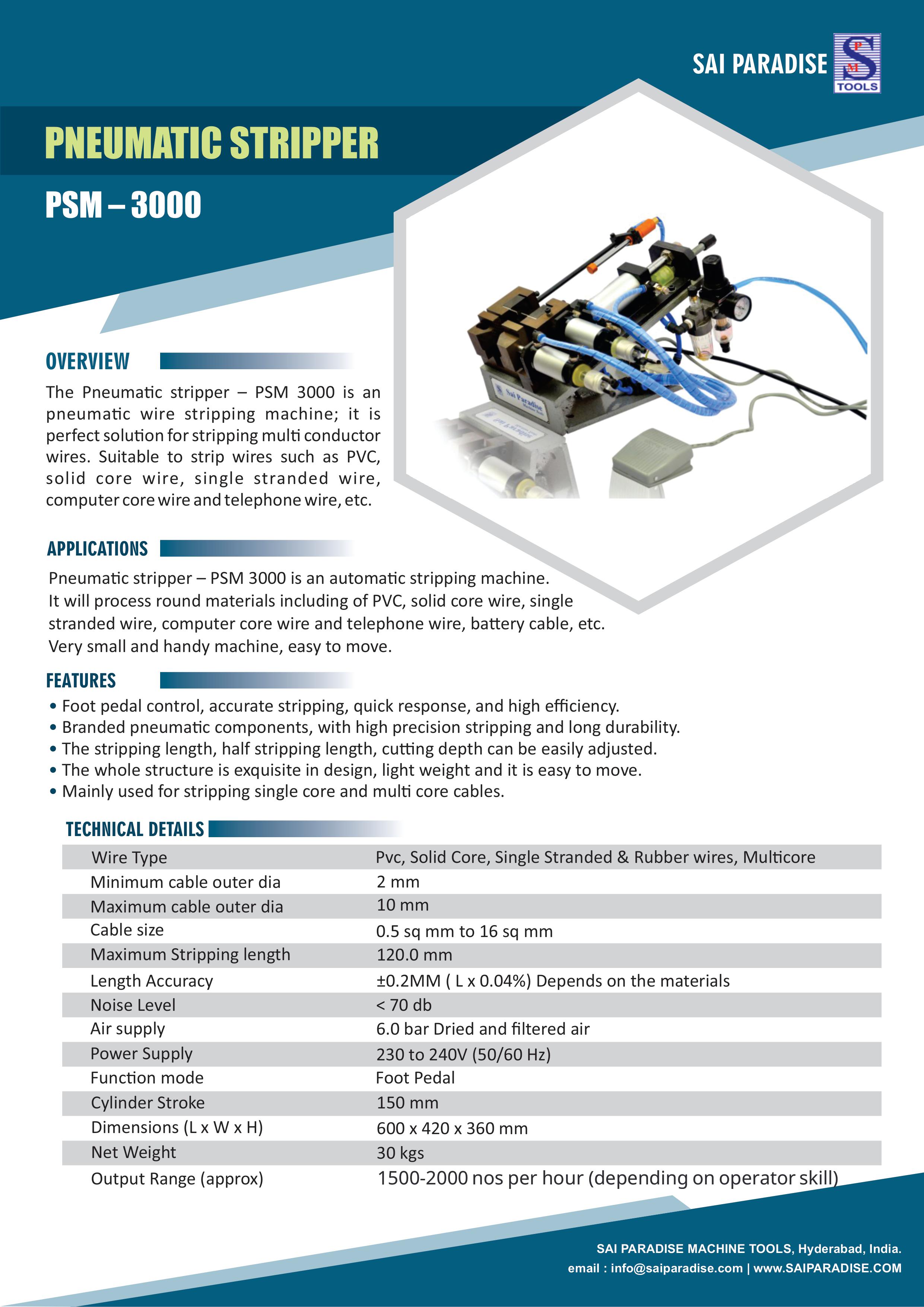

Pneumatic Stripper (PSM – 3000)

Description

The Pneumatic stripper – PSM 3000 is an pneumatic wire stripping machine; it is perfect solution for stripping multi conductor wires. Suitable to strip wires such as PVC, solid core wire, single stranded wire, computer core wire and telephone wire, etc.

Features
  • Foot pedal control, accurate stripping, quick response, and high efficiency
  • Branded pneumatic components, with high precision stripping and long durability
  • The stripping length, half stripping length, cutting depth can be easily adjusted
  • The whole structure is exquisite in design, light weight and it is easy to move
  • Mainly used for stripping single core and multi core cables
Applications

Pneumatic stripper – PSM 3000 is an automatic stripping machine. It will process round materials including of PVC, solid core wire, single stranded wire, computer core wire and telephone wire, battery cable, etc. Very small and handy machine, easy to move.

Technical Details
Wire Type Pvc, Solid Core, Single Stranded & Rubber wires, Multicore
Minimum cable outer dia 2 mm
Maximum cable outer dia 10 mm
Cable size 0.5 sq mm to 16 sq mm
Maximum Stripping length 120.0 mm
Length Accuracy ±0.2MM ( L x 0.04%) Depends on the materials
Noise Level < 70 db
Air supply 6.0 bar Dried and filtered air
Power Supply 230 to 240V (50/60 Hz)
Function mode Foot Pedal
Cylinder Stroke 150 mm
Dimensions (L x W x H) 600 x 420 x 360 mm
Net Weight 30 kgs
Output Range (approx) 1500-2000 nos per hour (Depending on operator skill)
