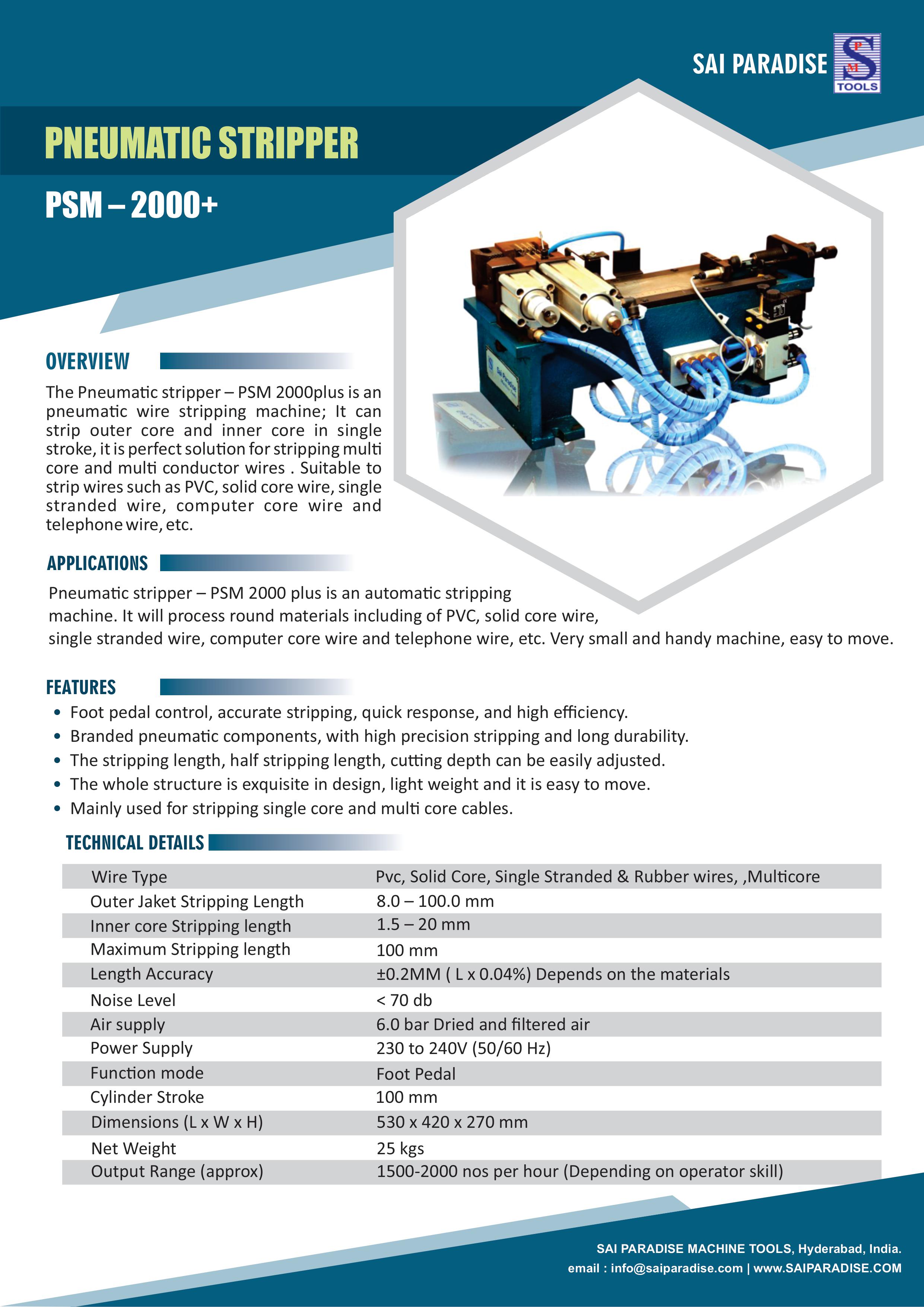

Pneumatic Stripper (PSM – 2000+)

Description

The Pneumatic stripper – PSM 2000plus is an pneumatic wire stripping machine; It can strip outer core and inner core in single stroke, it is perfect solution for stripping multi core and multi conductor wires . Suitable to strip wires such as PVC, solid core wire, single stranded wire, computer core wire and telephone wire, etc.

Features

Foot pedal control, accurate stripping, quick response, and high efficiency
Branded pneumatic components, with high precision stripping and long durability
The stripping length, half stripping length, cutting depth can be easily adjusted
The whole structure is exquisite in design, light weight and it is easy to move
Mainly used for stripping single core and multi core cables

Applications

Pneumatic stripper – PSM 2000 plus is an automatic stripping machine. It will process round materials including of PVC, solid core wire, single stranded wire, computer core wire and telephone wire, etc. Very small and handy machine, easy to move.

Technical Details

Wire Type	Pvc, Solid Core, Single Stranded & Rubber wires
Outer Jaket Stripping Length	8.0 – 100.0 mm
Inner core Stripping length	1.5 – 20 mm
Maximum Stripping length	100 mm
Length Accuracy	±0.2MM ( L x 0.04%) Depends on the materials
Noise Level	< 70 db
Air supply	6.0 bar Dried and filtered air
Power Supply	230 to 240V (50/60 Hz)
Function mode	Foot Pedal
Cylinder Stroke	100 mm
Dimensions (L x W x H)	530 x 420 x 270 mm
Net Weight	25 kgs
Output Range (approx)	1500-2000 nos per hour (Depending on operator skill)
