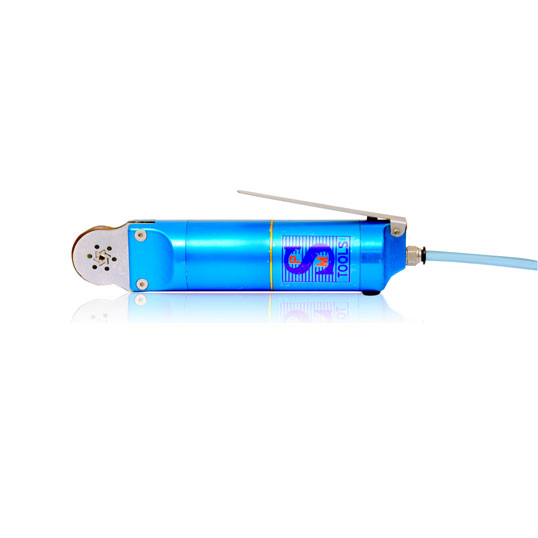

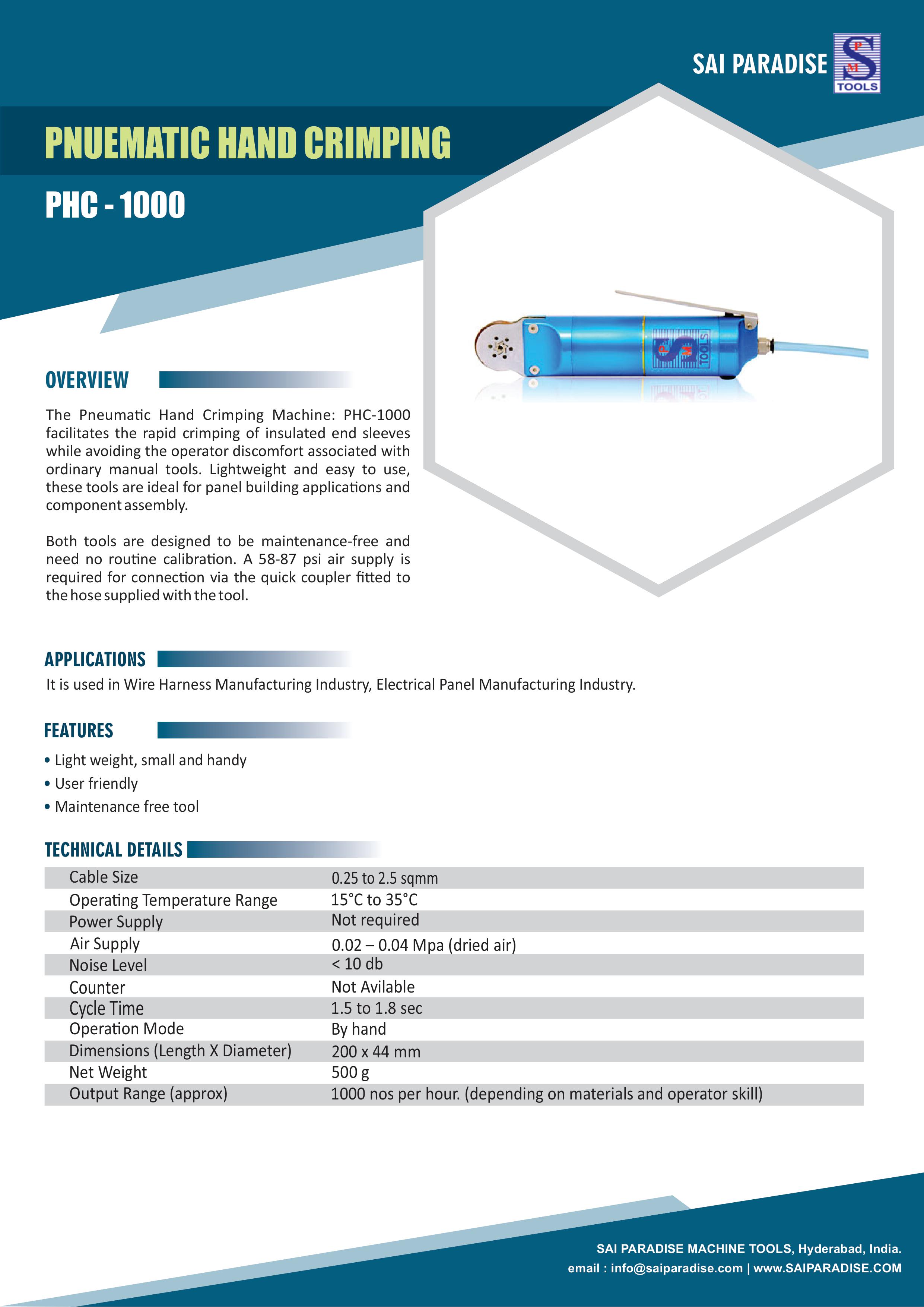

Pnuematic Hand Crimping (PHC – 1000)

Description

The Pneumatic Hand Crimping Machine: PHC-1000 facilitates the rapid crimping of insulated end sleeves while avoiding the operator discomfort associated with ordinary manual tools. Lightweight and easy to use, these tools are ideal for panel building applications and component assembly.

Both tools are designed to be maintenance-free and need no routine calibration. A 58-87 psi air supply is required for connection via the quick coupler fitted to the hose supplied with the tool.

Features
  • Light weight, small and handy
  • User friendly
  • Maintenance free tool
Applications

It is used in Wire Harness Manufacturing Industry, Electrical Panel Manufacturing Industry.

Technical Details
Cable Size 0.25 to 2.5 sqmm
Operating Temperature Range 15°C to 35°C
Power Supply Not required
Air Supply 0.02 – 0.04 Mpa (dried air)
Noise Level < 10 db
Counter Not Avilable
Cycle Time 1.5 to 1.8 sec
Operation Mode By hand
Dimensions (Length X Diameter) 200 x 44 mm
Net Weight 500 g
Output Range (approx) 1000 nos per hour. (depending on materials and operator skill)
