Cutting & Stripping (Multistrip – 999+)

Description

This is a fully automatic cable cutting and stripping machine for 2 cores flat & round cables. It handles and processes multi-core cables of external diameter 8.0 sqmm maximum. It is designed for round sheathed wire's by stripping the 2 layers at the same time (the sheath and core insulation).The insulation materials that this Multi strip-999 plus handles are of PVC, Extruded Teflon, Silicon and many other types of materials.

Features

Quick change guide tubes and blades

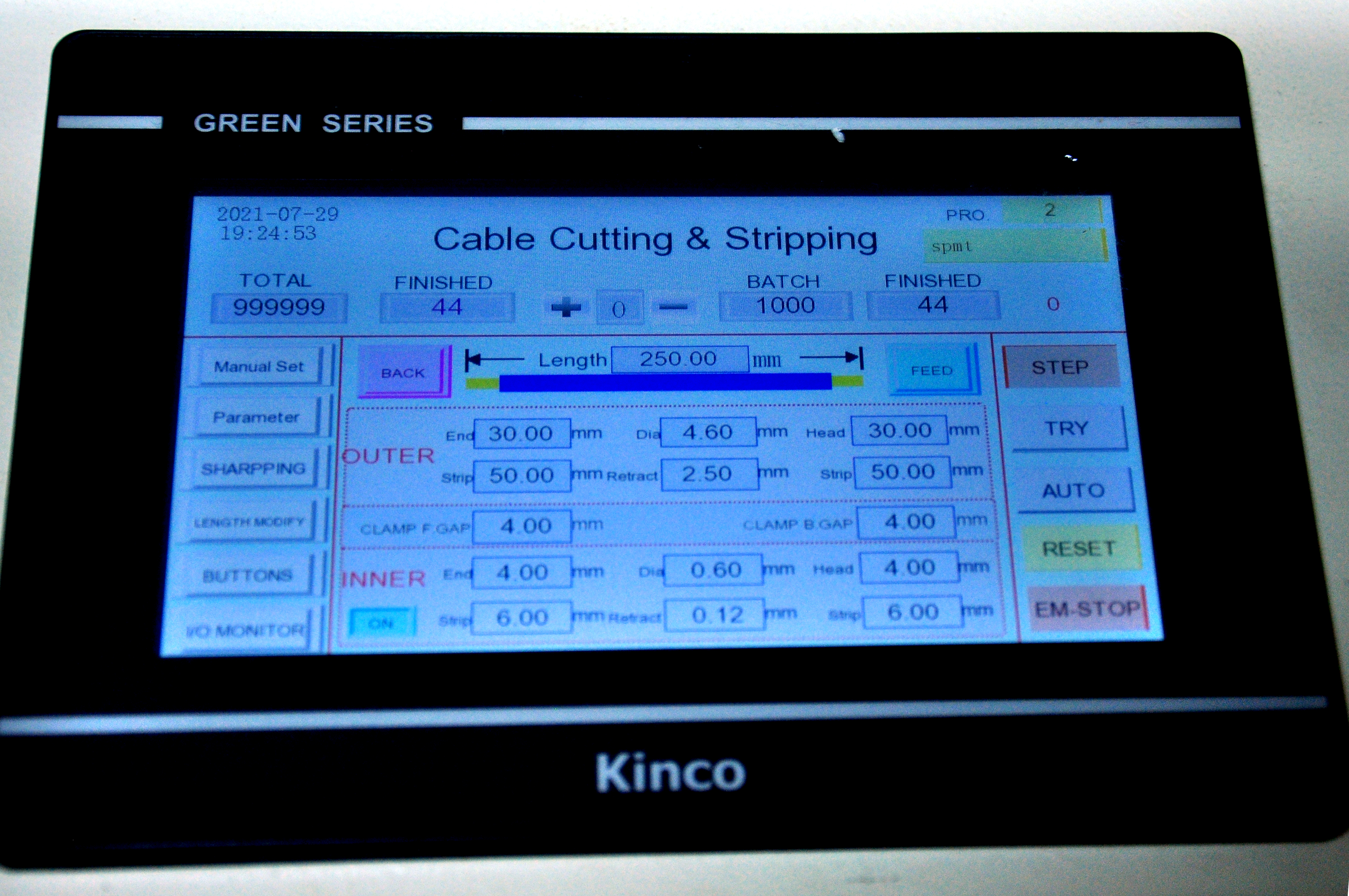

Simple operation of HMI (Touch Screen)
User-friendly operation
Quick programming
Mid-strip facility available (optaional)
Inline slitting attachment (optional)

Applications

Multi Strip- 999 plus is widely used in home appliances, automobile industry, and tele communication.

Technical Details

Operating Interphase	HMI (Touch Screen)
Wire Type	flat cable and multi core round cable
Cable size	0.50 – 8.0 sqmm
Maximum cable Outer dia	8.0 mm (round), 4.0 x 8.0 mm (flat)
Stripping Operation	Inner and Outer
Lead Stripping Length inner core	2.0 – 15.0 mm
Tail Stripping Length inner core	2.0 – 15.0 mm
Lead Stripping Length Outer core	20.0 – 250.0 mm
Tail Stripping Length Outer core	20.0 – 80.0 mm
Length Accuracy	±0.1mm ( L x 0.02%) Depends on the materials
Noise Level	< 70 db
Programme memory capacity	Upto 100 no’s with all processing parameters
Power Supply	230 to 240V (50/60 Hz)
Motor	3.15 KW
Air supply	4.0-6.0 bar Dried and filtered air
Dimensions (L x W x H)	420 x 340 x 280 mm
Net Weight	50 kgs
Output Range (approx)	360 pcs /h at 500 mm Length and both side 100 mm outer strip length and single line feed (depending on operator skill)
