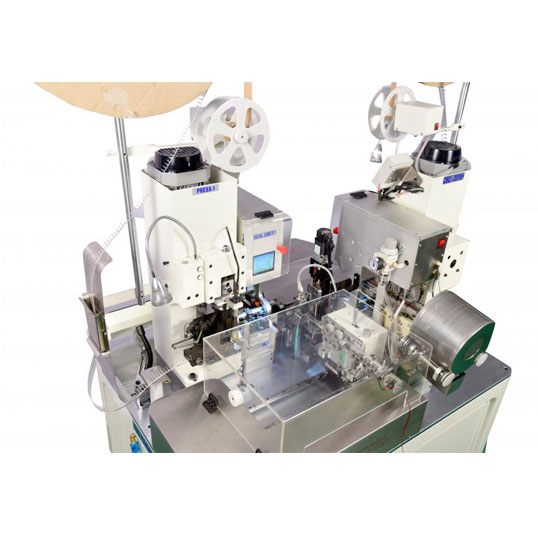

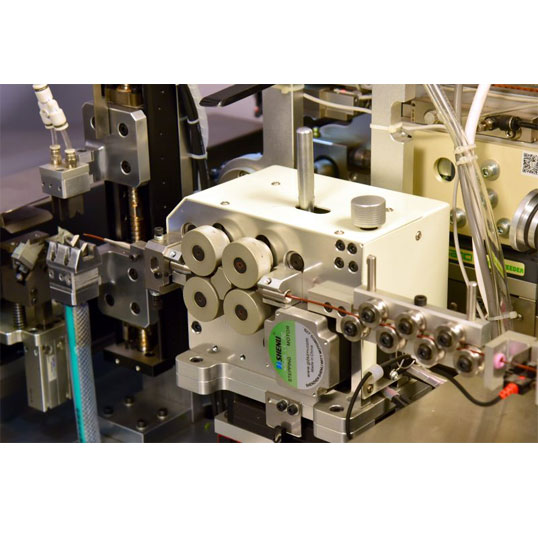

Cutting, Stripping & Crimping – (Crimp Center – 2s)

Description

Crimp Center – 2S is fully automatic wire cutting, stripping & both side crimping wih seal machine. You can also switch off the sealing function in program if you want to crimp terminal without seal. We can store settings in different program files through touch screen.

Features

Integrated Crimp force analyzer
Force Sensor indicates the actual force after every stroke
Wire run out sensor
Sensor for indication of loss or pressure
Wire jam sensor
Less changeover time
Short and easy setup time
Upto 100 programs data restore to quick selection
Very low and negligible maintenance

Applications

It is used in Wire Harness Industries, Automobile Industries, Home Appliance Industries, Control Panel Manufacturing Industries.

Technical Details

Operating interphase	Touch Screen (HMI)
Wire Type	PVC, Silicon wires etc
Wire range	0.30 sqmm - 2.0 sqmm
Stripping length	1.0 mm to 10mm
Cutting precision	± (0.5% + L x 0.002) mm
Air supply	0.4 – 0.6 Mpa
Crimping Force	2.0 Ton
Power Supply	220V 50Hz. Single phase
Power	3.1 Kw
Dimensions (L x W x H)	700 x 800 x 1500 mm
Net Weight	358kg
Output Range (approx)	3000 – 4000 Kgs per hour (depending on the materials)
