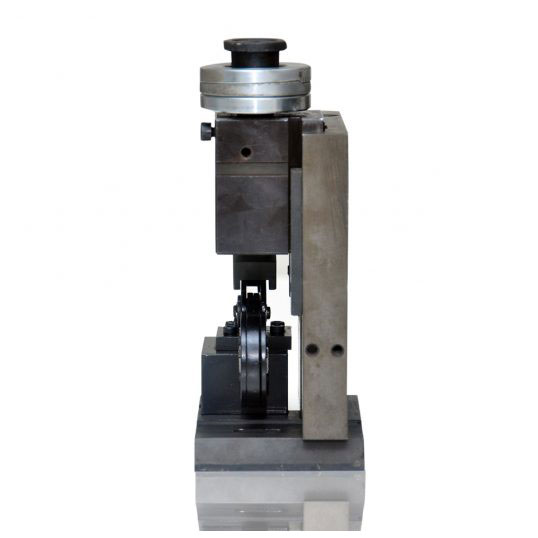

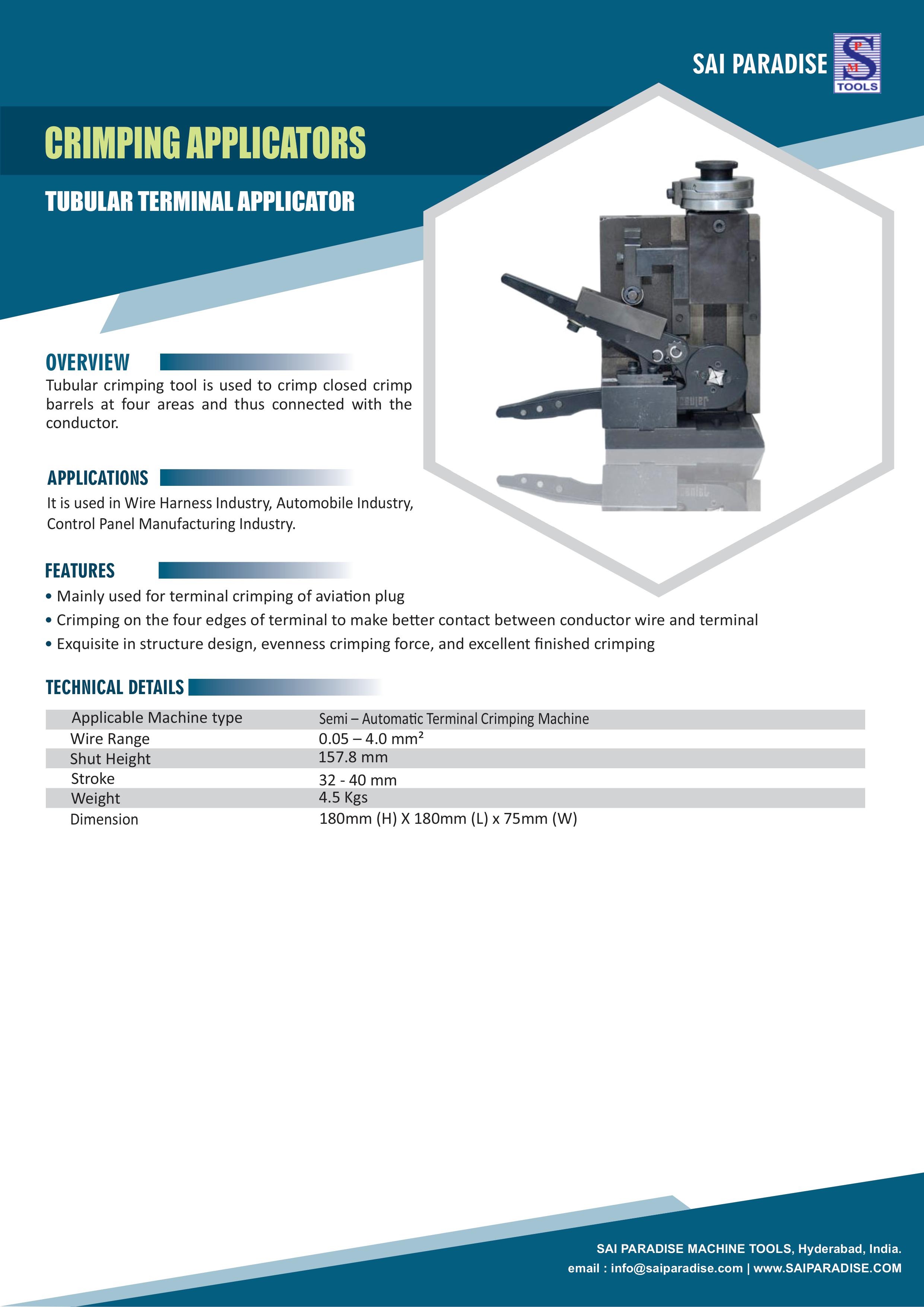

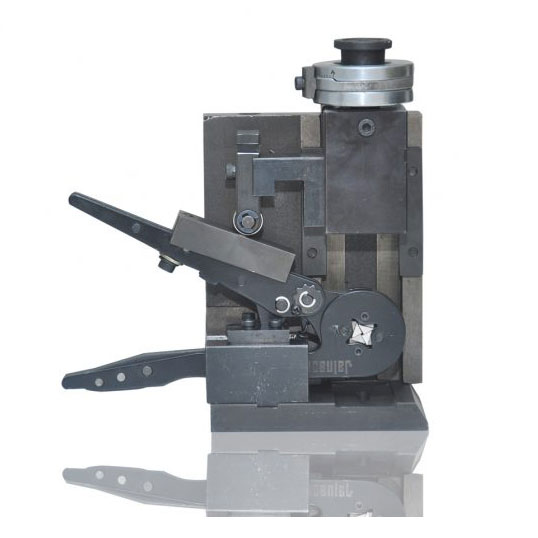

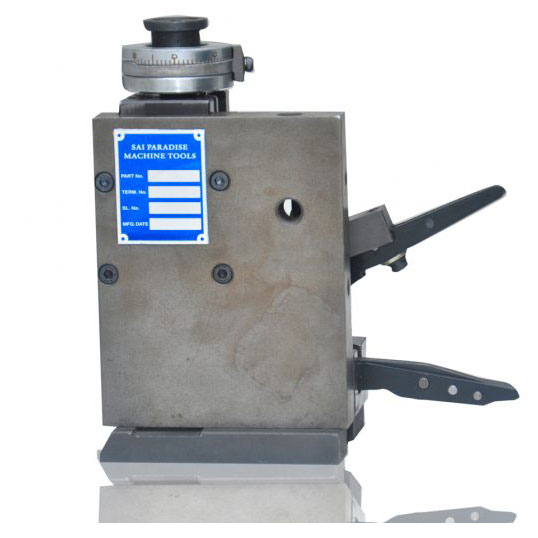

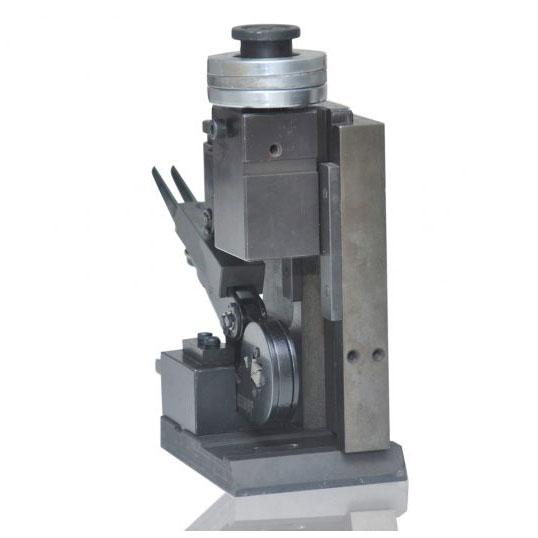

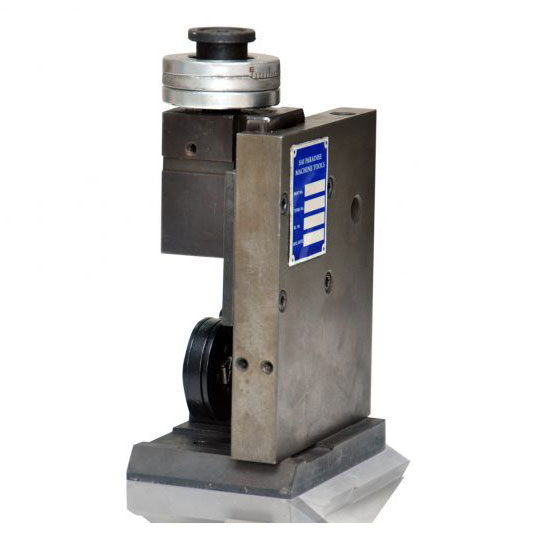

Crimping Applicators – (Tubular Terminal Applicator)

Tubular crimping tool is used to crimp closed crimp barrels at four areas and thus connected with the conductor.

Mainly used for terminal crimping of aviation plug
Crimping on the four edges of terminal to make better contact between conductor wire and terminal
Exquisite in structure design, evenness crimping force, and excellent finished crimping

It is used in Wire Harness Industry, Automobile Industry, Control Panel Manufacturing Industry.

Applicable Machine type	Semi – Automatic Terminal Crimping Machine
Wire Range	0.05 – 4.0 mm²
Shut Height	157.8 mm
Stroke	32 - 40 mm
Weight	4.5 Kgs
Dimension	180mm (H) X 180mm (L) x 75mm (W)
