Crimp Load Testers – (PPT – 2000+)

Description

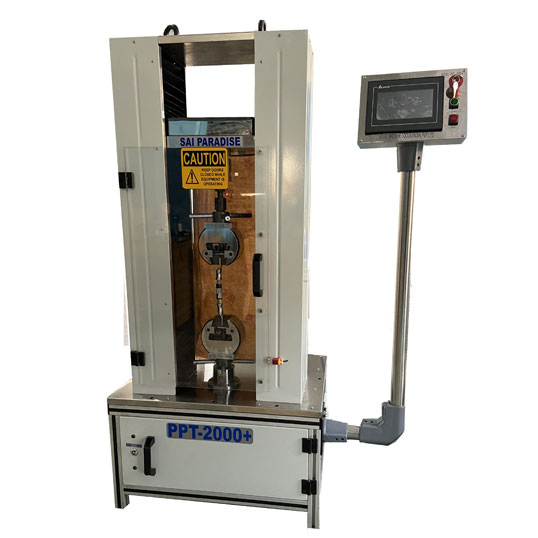

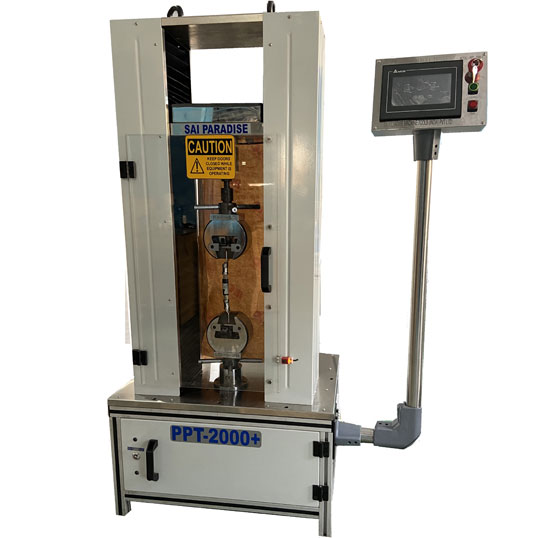

Sai Paradise manufactured push pull tester is a sophisticated dual-range, motorized, and stand-top unit designed to measure pull-test forces of crimp and ultrasonic weld connections on a wide range of wires than single-range pull test devices.

Pull test values are critical parameters for quality control and assurance. Hand operated pull test devices are bound to give inconsistent data depending on the operator or pull rate. Several standards specify that a test device must pull with a consistent rate.

The PPT-2000 Plus comes with a speed-controlled motor, which ensures consistent pull rates throughout the measuring range resulting in repeatable and accurate data. Pull forces can be measured in Kilograms and Newtons. The standard terminal holder accommodates a wide variety of terminals to suit most applications. A variety of terminal holders are available with us. They will be supplied upon request.

Features
  • Touch Screen (HMI) for easy programming
  • Digital pull force readout speed-controlled motor
  • Consistent pull rates throughout the measuring range
Applications

It is used in Wire harness Industries, Automobile Industries, Home Appliance Industries, Control Panel Manufacturing Industries.

Technical Details
Operating interphase PLC With HMI (Touch Screen)
Pull Of Speed 10 – 300 mm variable speed per min
Drive Electric drive for wire pulling
Operation Mode Peak Peak displays the peak value in kgf or Newton
Memory upto 1000 recipes can save
Power 1.8 Kw
Power Supply 440 V (50/60 Hz)
Display HMI 7 Inch (Touch Screen)
Dimensions (L x W x H) 600 x 600 x 1300 mm (23.62 x 23.62 x 51.18 inches)
Net Weight 250 kgs (550.92 lbs)
Measuring Range Upto 2000 kg by resolution of 10 grams
Accuracy +/- 0.5%
Temperature Range Operation 0 – 400C, Storage 0 – 600C (RF less than 80%)
