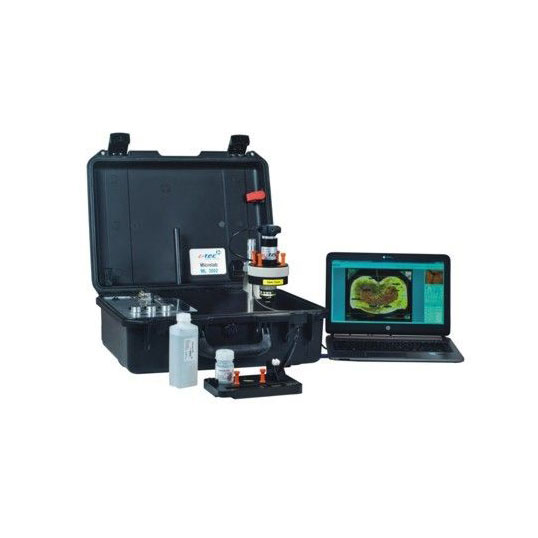

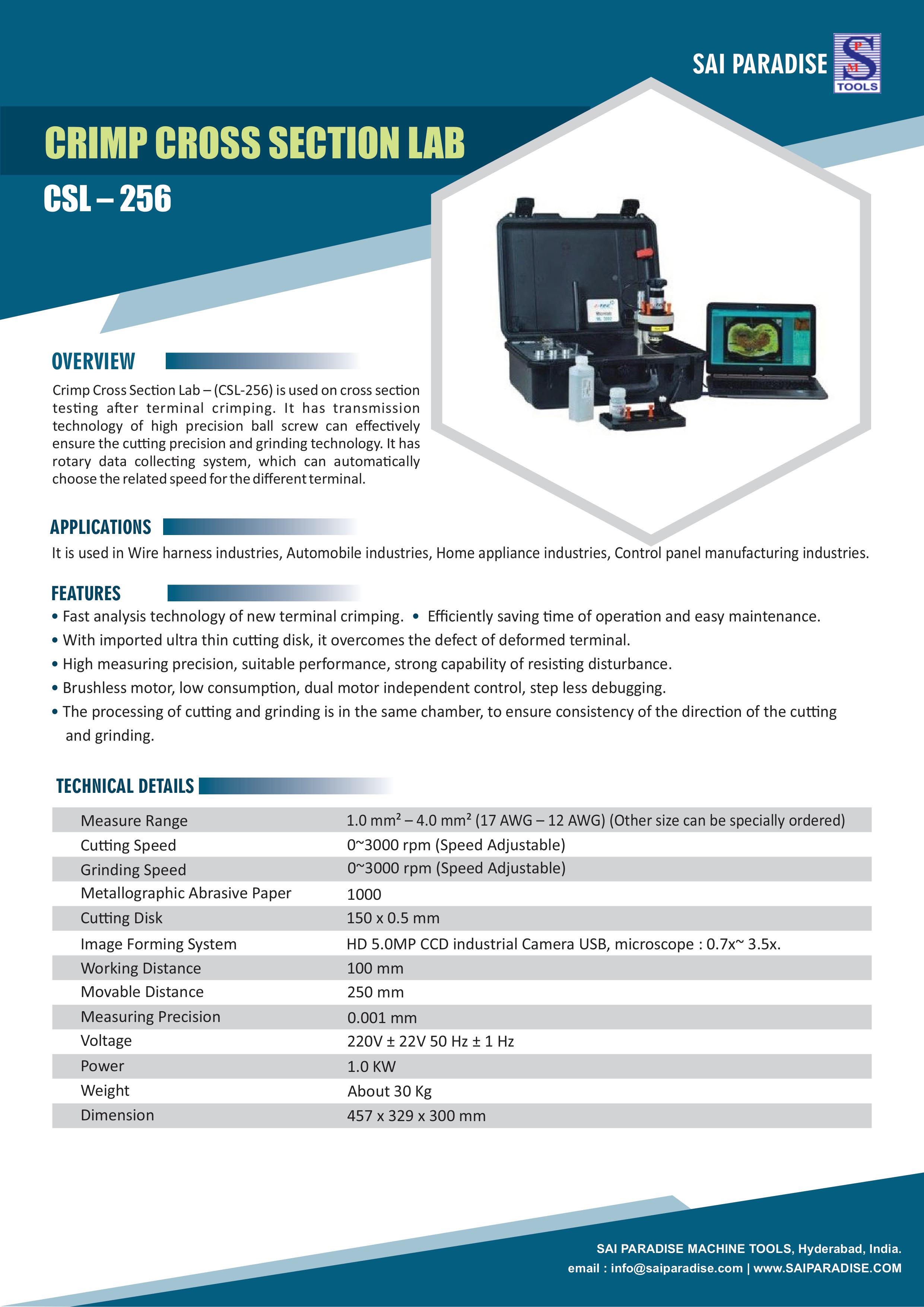

Crimp Cross Section Lab – (CSL – 256)

Description

Crimp Cross Section Lab – (CSL-256) is used on cross section testing after terminal crimping. It has transmission technology of high precision ball screw can effectively ensure the cutting precision and grinding technology. It has rotary data collecting system, which can automatically choose the related speed for the different terminal.

Features
  • Fast analysis technology of new terminal crimping.
  • Efficiently saving time of operation and easy maintenance.
  • With imported ultra thin cutting disk, it overcomes the defect of deformed terminal.
  • High measuring precision, suitable performance, strong capability of resisting disturbance.
  • Brushless motor, low consumption, dual motor independent control, step less debugging.
  • The processing of cutting and grinding is in the same chamber, to ensure consistency of the direction of the cutting and grinding.
Applications

It is used in Wire harness industries, Automobile industries, Home appliance industries, Control panel manufacturing industries.

Technical Details
Measure Range 1.0 mm² – 4.0 mm² (17 AWG – 12 AWG) (Other size can be specially ordered)
Cutting Speed 0~3000 rpm (Speed Adjustable)
Grinding Speed 0~3000 rpm (Speed Adjustable)
Metallographic Abrasive Paper 1000
Cutting Disk 150 x 0.5 mm
Image Forming System HD 5.0MP CCD industrial Camera USB, microscope : 0.7x~ 3.5x.
Working Distance 100mm
Movable Distance 250mm
Measuring Precision 0.001mm
Voltage 220V ± 22V 50 Hz ± 1 Hz
Power 1.0 KW
Weight About 30 Kg
Dimension 457 x 329 x 300 mm
