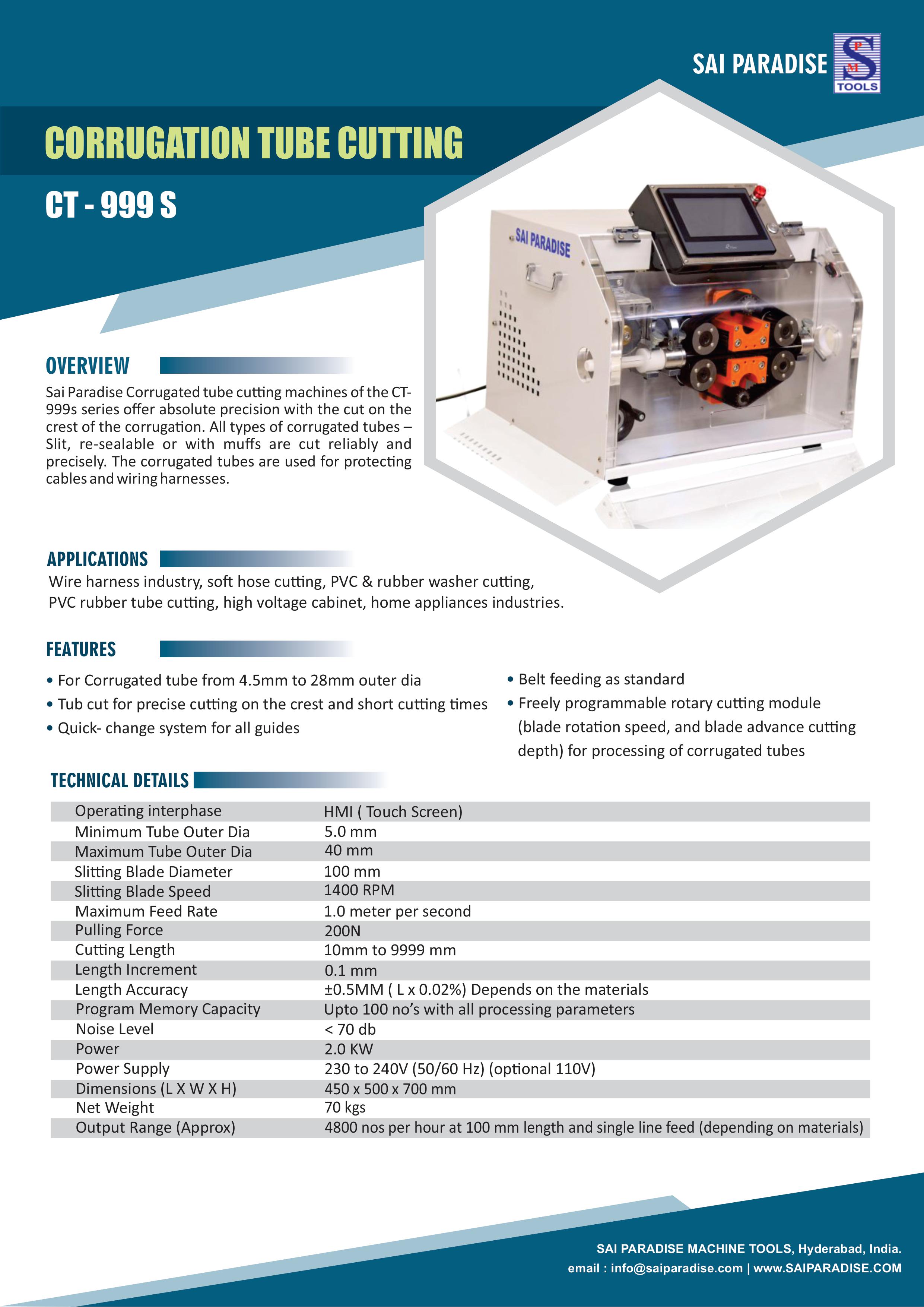

Corrugation Tube Cutting (CT – 999s)

Description

Sai Paradise Corrugated tube cutting machines of the CT-999s series offer absolute precision with the cut on the crest of the corrugation. All types of corrugated tubes – Slit, re-sealable or with muffs are cut reliably and precisely. The corrugated tubes are used for protecting cables and wiring harnesses.

Features
  • For Corrugated tube from 4.5mm to 28mm outer dia
  • Tub cut for precise cutting on the crest and short cutting times
  • Quick- change system for all guides
  • Belt feeding as standard
  • Freely programmable rotary cutting module (blade rotation speed, and blade advance cutting depth) for slitting process of corrugated tubes.
Applications

Wire harness industry, soft hose cutting, PVC & rubber washer cutting, PVC rubber tube cutting, high voltage cabinet, home appliances industries.

Technical Details
Operating interphase HMI (Touch Screen)
Minimum Tube Outer Dia 5.0 mm
Maximum Tube Outer Dia 40 mm
Slitting Blade Diameter 100 mm
Slitting Blade Speed 1400 RPM
Maximum Feed Rate 1.0 meter per second
Pulling force 200N
Cutting length 10mm to 9999 mm
Length Increment 0.1 mm
Length Accuracy ±0.5MM ( L x 0.02%) Depends on the materials
Program memory capacity Upto 100 no’s with all processing parameters
Noise Level < 70 db
Power 2.0 KW
Power Supply 230 to 240V (50/60 Hz) (optional 110V)
Dimensions (L x W x H) 450 x 500 x 700 mm
Net Weight 70 kgs
Output Range (approx) 4800 nos per hour at 100 mm length and single line feed (depending on materials)
