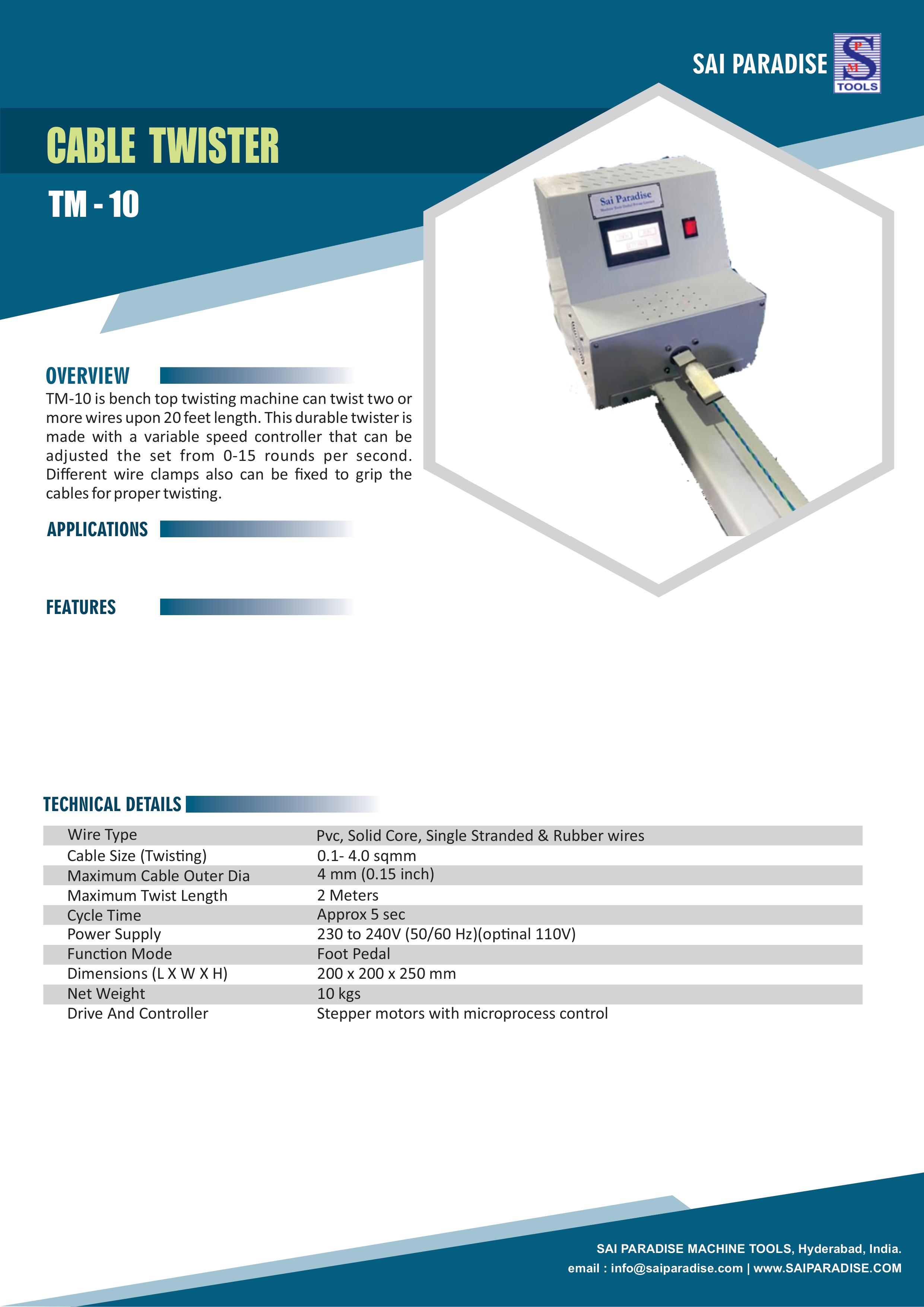

Cable Twister – (TM – 10)

Description

TM-10 is bench top twisting machine can twist two or more wires upon 20 feet length. This durable twister is made with a variable speed controller that can be adjusted the set from 0-15 rounds per second. Different wire clamps also can be fixed to grip the cables for proper twisting.

Features
  • High Quality Precision Bench Machine.
  • Forward & Reverse Jog Mode.
  • Touch Screen (HMI)
  • User Friendly Operation.
Applications

Content Not Availble

Technical Details
Wire Type Pvc, Solid Core, Single Stranded & Rubber wires
Cable size (Twisting) 0.1- 4.0 sqmm
Maximum Cable outer dia 4 mm (0.15 inch)
Maximum Twist Length 2 Meters
Cycle time Approx 5 sec
Power Supply 230 to 240V (50/60 Hz)(optinal 110V)
Function mode Foot Pedal
Dimensions (L x W x H) 200 x 200 x 250 mm
Net Weight 10 kgs
Drive and controller Stepper motors with microprocess control
