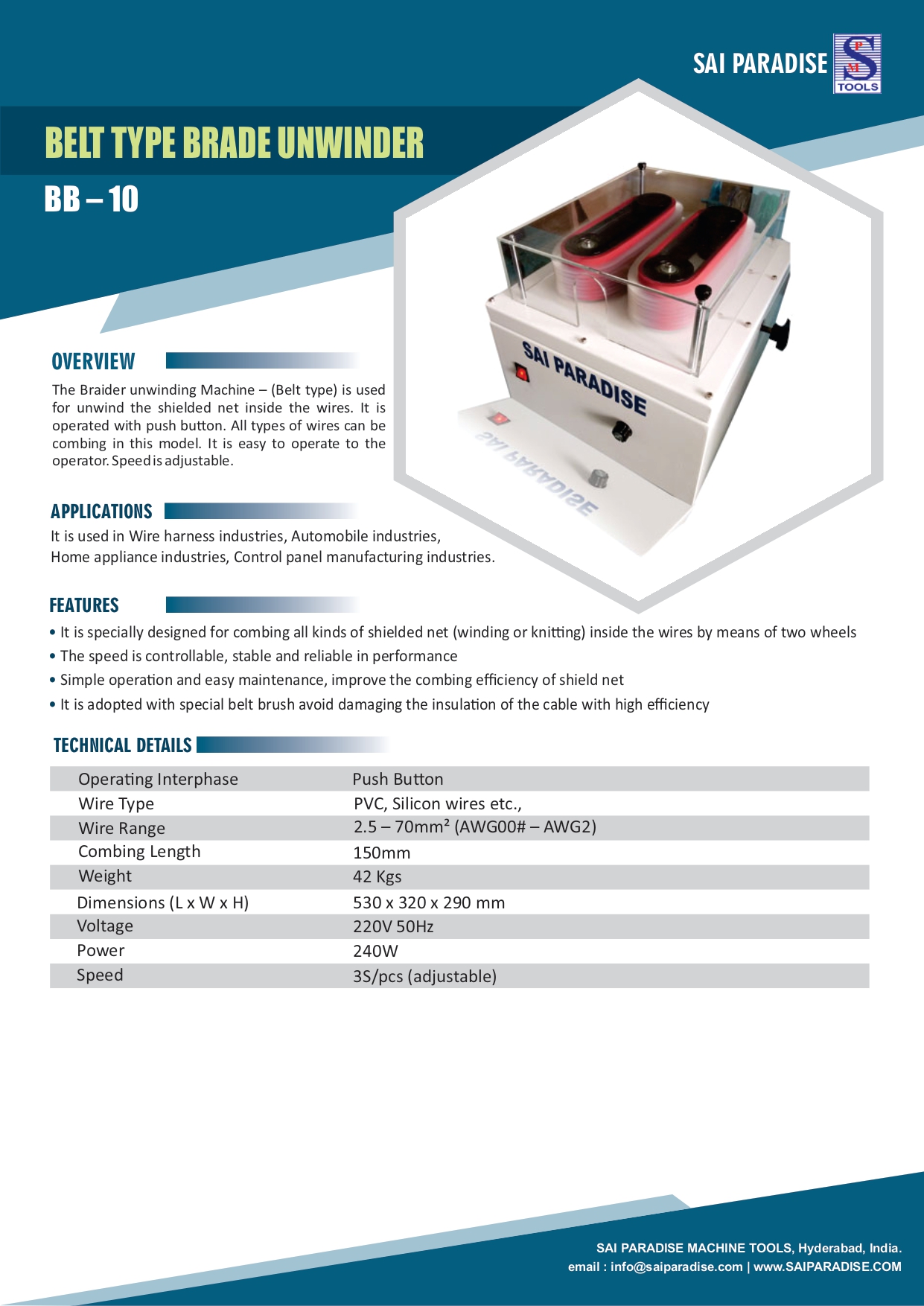

Belt Type Braid Unwinder – (BB – 10)

Description

The Braid unwinding Machine – (Belt type) is used for unwind the shielded net inside the wires. It is operated with push button. All types of wires can be combing in this model. It is easy to operate to the operator. Speed is adjustable.

Features
  • It is specially designed for combing all kinds of shielded net (winding or knitting) inside the wires by means of two wheels
  • The speed is controllable, stable and reliable in performance
  • Simple operation and easy maintenance, improve the combing efficiency of shield net
  • It is adopted with special belt brush avoid damaging the insulation of the cable with high efficiency
Applications

It is used in Wire harness industries, Automobile industries, Home appliance industries, Control panel manufacturing industries.

Technical Details
Operating Interphase Push Button
Belt Brush Distance Adjustable
Braid Length 200 mm Max
Wire Diameter 1 - 10 mm
Air supply Not Required
Power 1.0 Kw
Power Supply 230 V (50/60 Hz)
Dimensions (L x W x H) 450 x 370 x 274 mm
Net Weight 10 Kgs
Speed 0 ~ 6000 RPM Adjustable
